channel canal forming machinery road drain ditch forming machine customized type high productivity-0

Trapezoid ditch lining machine

Home >  Products >  Ditch lining machine >  Trapezoid ditch lining machine

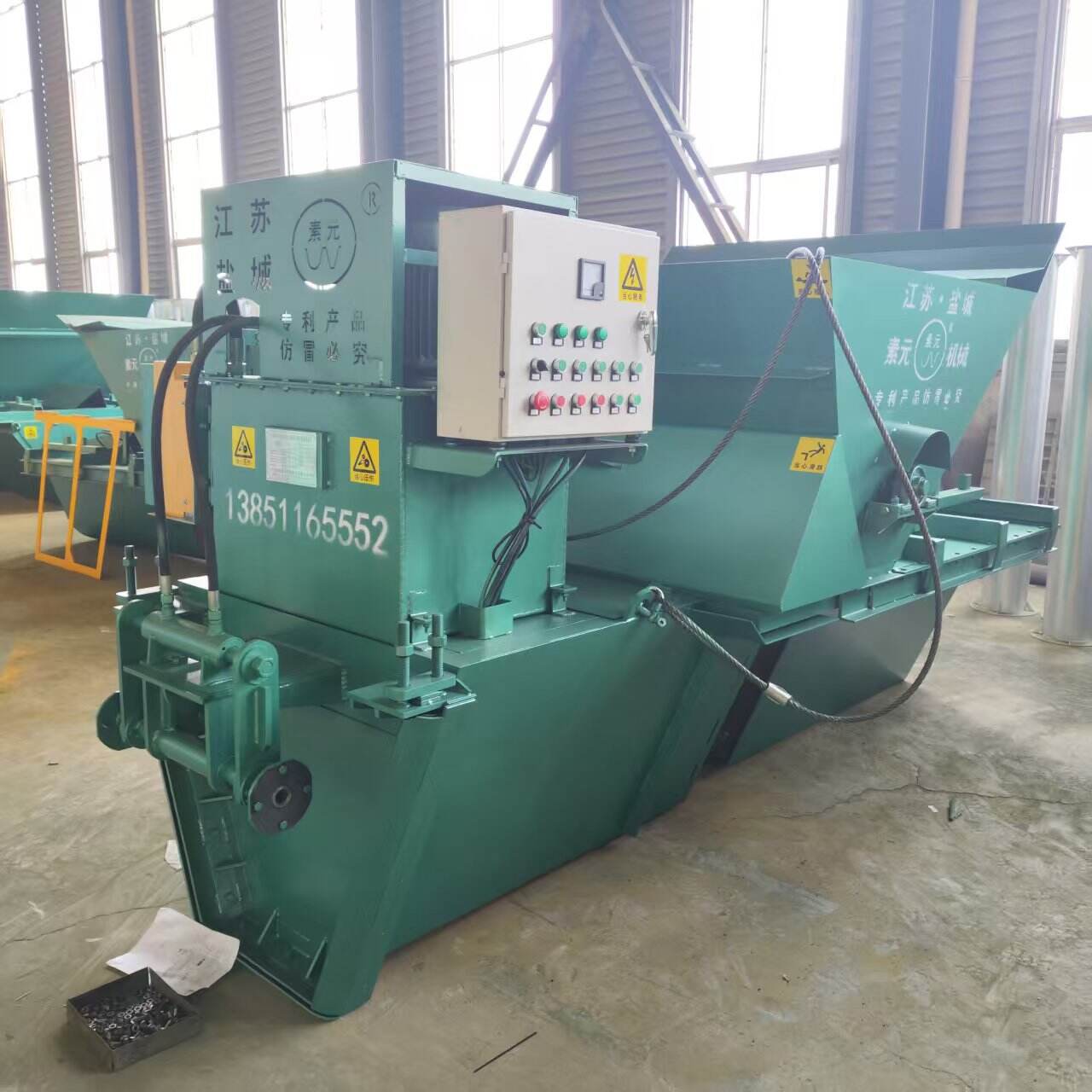

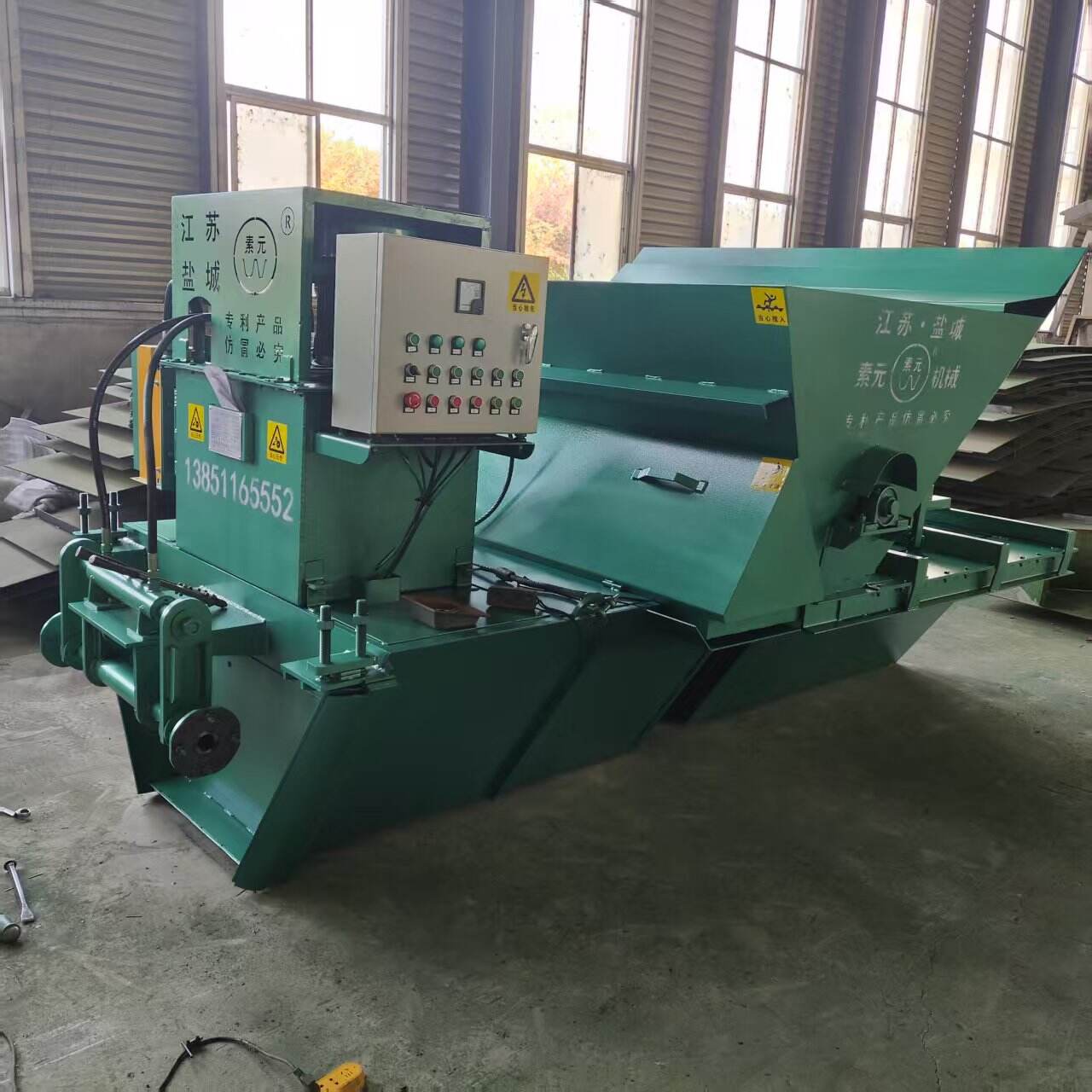

Channel Canal Forming Machinery Road Drain Ditch Forming Machine Customized Type High Productivity

Product Description

This Channel Canal Forming Machinery consists of a main forming machine, a mold, a feed hopper, and a power system (hydraulic system and generator set). It utilizes advanced vibrating technology to ensure optimal concrete forming results. It also comes with a bucket the same size as the ditch. You can attach it to an excavator to first dig the ditch outline before placing the machine in for lining.The minimum order quantity for this machine is one set.

Product Parameters

The size and parameters of the Channel Canal Forming Machinery will vary depending on the size of the ditch.

Dimension

3.9*1.5*2 m

Motor power

5.5kW

Diesel generator power

20 kW

Single time concrete feed

90-120mm

Number of pushes

≥15times/min

Productivity

80m/h

Thickness

50-200mm

Weight

2600kg

Product Application

This Channel Canal Forming Machinery is used in the production of drainage ditches, including drainage ditches on both sides of roads, highway drainage ditches, canals, farmland water storage ditches and irrigation canals.

Product Advantages

This Channel Canal Forming Machinery is an automatic concrete ditch forming machine. This machine is customizable and can be customized according to the project dimensions at the customer's site. The machine is automatic working,with high efficiency. The concrete is formed in one step, and combined with vibration technology, the concrete ditch is made stronger.

FAQ

1.What is the efficiency of the Channel Canal Forming Machinery?
——The efficiency depends on the size of the ditch, and the general ditch efficiency can reach 65-80 meters per hour.
2.What is the Payment method?
—— T/T, 30% deposit is used for machine production, and the balance needs to be settled before shipment.
3.How long is the delivery period?
——About 10-15 days, the specific time depends on the number of machines.
4.Can you ship to our country?
——Yes, we can take care of the transportation.
5.Do you offer warranty?
——Yes, we provide warranty, the warranty period is one year.
6.Can you provide machine operation instruction?
——Video instruction or on-site instruction by technicians can be provided.
